Tile Tray Systems

For Pre-formed Trays that can be tiled

Mechanically clamped to the tray  •  Height adjustable tiling flange  •  Stainless Lid or Tile Insert

EasyClean

Side Exit 50mm socket

Leak Return Port Body
Inlet size – 100mm

Bottom Exit 50mm socket

Leak Return Port Body
Inlet size – 100mm

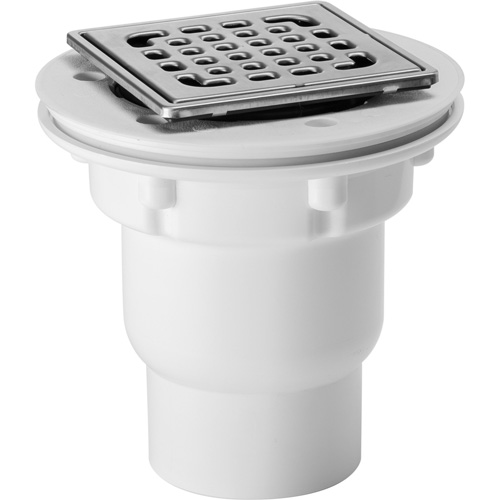

Bottom Exit 80mm socket

Leak Return Port Body
Inlet size – 100mm

Bottom Exit 100mm inside

Leak Return Port Body
Inlet size – 100mm

HiFlow

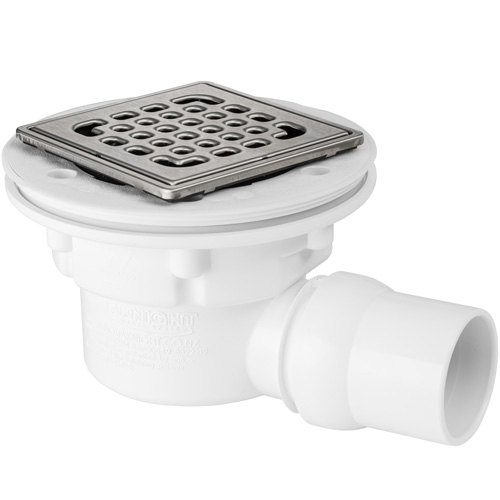

Side Exit 50mm socket

Leak Return Port Body
Inlet size – 100mm

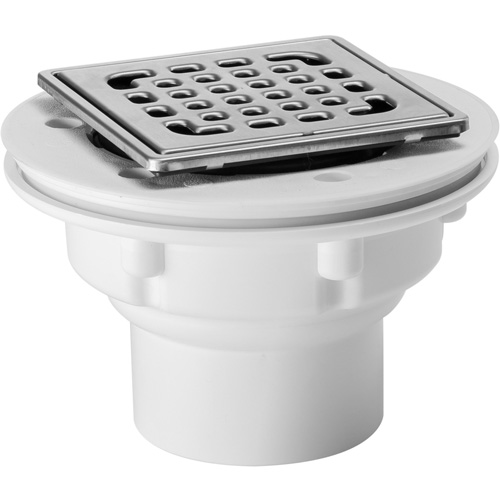

Bottom Exit 80mm socket

Leak Return Port Body

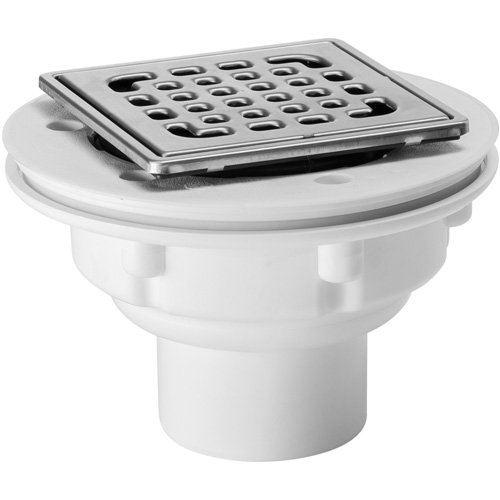

Bottom Exit 50mm inside

Leak Return Port Body
Inlet size – 100mm

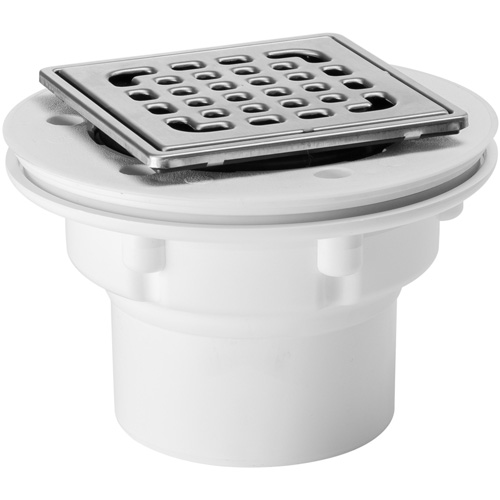

Bottom Exit 100mm inside

Leak Return Port Body
Inlet size – 100mm

Bottom Exit 50mm socket

Leak Return Port Body
Inlet size – 100mm

Bottom Exit 80mm inside

Leak Return Port Body
Inlet size – 100mm

Lid Types

Stainless Lid

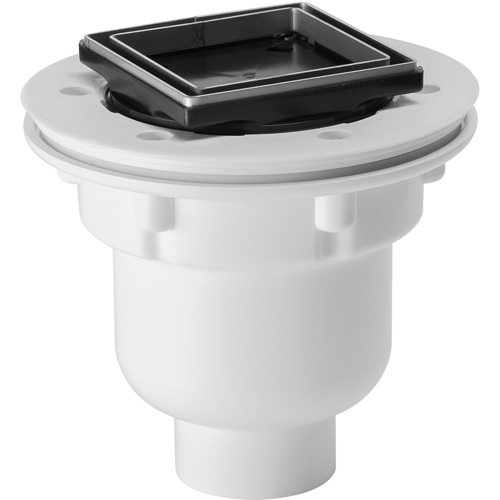

Tile Insert
